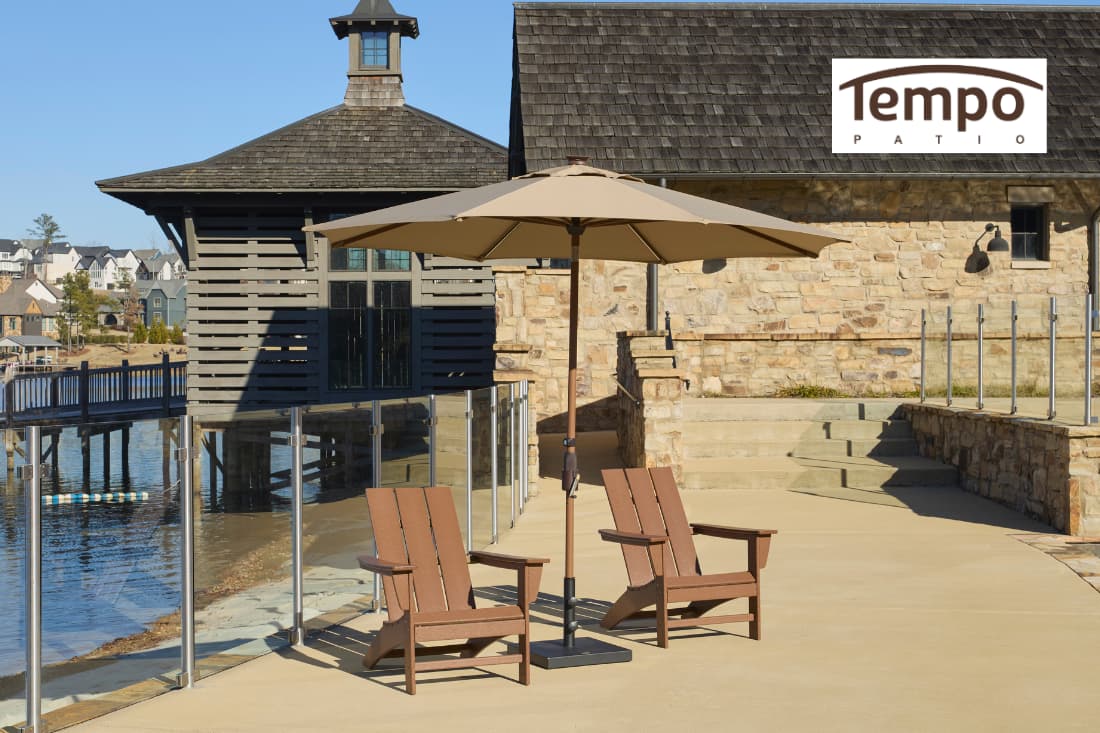

How Anchored Patio Umbrella Systems for Patios Work
An anchored patio umbrella stays in a set position by attaching its support to concrete, decking, or a dedicated footing. Tempo Patio offers Market and Cantilever umbrellas with base options for different patio layouts.
The right setup depends on the umbrella style, canopy size, mounting surface, and local weather. Anchoring can reduce movement, but it doesn’t make an umbrella windproof. So, check the manufacturer’s requirements before installation and close the canopy when conditions call for it.
Keep reading to see how anchored umbrella systems work and what to check before choosing one.
Anchored Patio Umbrellas: What Buyers Need to Know
These key points summarize how anchoring affects umbrella stability, support requirements, and installation choices for a more permanent patio setup.
- Anchoring adds stability, but it isn’t windproof: A fixed umbrella still needs to be closed and secured when strong winds are expected.
- Support needs vary by umbrella style: Base weights vary by model and umbrella style. Check the current Tempo Patio specification for the selected umbrella and compatible base.
- Installation depends on the system: In-ground mounts may need digging, concrete, careful leveling, and curing time. Bolt-down mounts depend on the strength and condition of the patio.
What Is an Anchored Patio Umbrella System?
An anchored umbrella attaches to a fixed point instead of relying only on a movable base. That point may be a surface plate, an in-ground receiver, or a concrete footing.
A regular Patio Umbrella often uses a heavy base to hold it in place. An anchored system connects the support pole, receiver, and hardware to the patio or footing.
Insights from ASTM F3512-21(2026) indicate
"These test methods are suitable for both end users and manufacturers to evaluate performance characteristics of MUs and base mounting components. End users may use these test methods to determine how well MUs and base components meet their particular application and conditions of use." - ASTM F3512-21(2026)
This can keep the umbrella in one spot and leave more room for walking. But the anchor is only part of the setup.
Common options include:
- Bolt-down plates
- In-ground receivers
- Removable fixed sleeves
- Structural deck mounts
The canopy, pole, receiver, hardware, and mounting surface must be compatible. Don’t assume a generic ground anchor will fit every umbrella. Follow the manufacturer's instructions.
How Does Anchoring Differ From a Weighted Base?
A weighted base is easier to move. An anchored system is meant to stay put.
|
Feature |
Anchored system |
Weighted base |
|
Position |
Fixed |
Movable |
|
Patio footprint |
Usually smaller |
Often larger |
|
Installation |
More involved |
Usually easier |
|
Relocation |
Difficult |
Easier |
|
Trip risk |
Can be lower |
Depends on base design |
|
Best fit |
Fixed layouts |
Flexible layouts |
|
Weather care |
Still needed |
Still needed |
An anchor helps solve the placement issue, but it doesn’t solve every stability concern. A weighted base may still make more sense when the patio layout changes often.
Which Anchoring Method Fits Your Patio?
The right anchoring method depends on the patio surface and the umbrella design. A bolt-down plate can suit solid concrete, while an in-ground sleeve may be better for semi-permanent fixed umbrella setups when a new footing can be installed.
The main choices differ in setup and flexibility. A surface plate keeps hardware above the patio. An in-ground system places more of the support below the surface.
|
System |
Best fit |
Main consideration |
|
Bolt-down plate |
Sound concrete |
Anchor and slab fit |
|
In-ground sleeve |
Fixed location |
Digging and footing |
|
Concrete footing |
New support |
Site conditions |
|
Weighted base |
Flexible layouts |
Space and ballast |
A bolt-down plate needs suitable concrete, while an in-ground sleeve requires more installation work.
Soil also matters for new footings. Check the ground, footing size, and umbrella design before installation. Use a fixed system when the location is settled and the patio can support it. Choose a weighted base when you’ll need more flexibility.
How Does the Patio Surface Change Installation?
The patio surface determines which anchoring method will work. Concrete, pavers, decking, and soil aren’t the same, so each needs its own approach when considering the basics of a patio umbrella.
Some manufacturers specify a minimum slab thickness for bolt-down systems. Use the exact requirements for the selected model rather than applying a generic thickness.
Is Concrete Suitable for a Bolt-Down Anchor?
Concrete can be a good surface for an anchored outdoor umbrella, but its condition matters.
Check for cracks, joints, edges, slab thickness, and existing damage. The anchors must also meet the required size, spacing, and embedment. A slab may look strong but still be unsuitable if the mounting point is too close to an edge or joint.
Can Pavers Support an Anchored Umbrella?
Pavers should not be treated as structural support. They can shift or crack under concentrated loads. Some systems may require removing the pavers and adding a footing below. The pavers can then be replaced around the receiver.
What About Decking?
Timber and composite decking need support below the surface boards. Depending on the umbrella, this may require:
- Structural joist connections
- Extra blocking
- Reinforced framing
- Approved fasteners
- Water protection
FEMA guidance also recommends securing outdoor items during strong winds. Still, that guidance does not provide a footing design for a specific umbrella.
A cantilever umbrella can place more force on its support than a small center-pole model. Check the full system before installation.
Why Do Cantilever Umbrellas Need Different Anchoring?
Cantilever umbrellas need more support because the canopy sits away from the pole. That offset creates more leverage on the pole, base, arm, and foundation.
Data from U.S. Consumer Product Safety Commission (CPSC) demonstrates
"Our past testing data has shown that sufficient anchor resistance force can be accomplished by weight or through the design of the anchor, whether it's below the sand or above the sand." - U.S. Consumer Product Safety Commission (CPSC)
A Market umbrella keeps the canopy around the center pole. A Cantilever umbrella moves the canopy to one side with a support arm. So the two designs place different demands on the mounting system.
This matters when planning the patio. A Market umbrella can fit through a table opening, while a Cantilever can shade a sectional or lounge area without a pole in the way.
Choose based on the furniture first. A Cantilever may suit open seating better, but its support system needs to match the canopy and mounting surface.
When Is a Market Umbrella Easier to Anchor?
A Market umbrella is often easier to position because the pole stays under the canopy. It can work well over dining tables, bistro sets, and defined seating areas.
A fixed receiver can keep the pole in place without taking up much floor space. But simpler geometry doesn’t mean the umbrella can stay open in any weather.
The National Weather Service advises securing outdoor items when strong winds are expected. So even an anchored umbrella needs a clear weather routine.
The key is the full setup, not the heaviest base.
Can You Add an Anchor to an Existing Patio?
Retrofitting an anchored patio umbrella can work, but the patio itself sets the limits. The surface, footing, drainage, and approved anchor system all need to suit the umbrella.
A finished patio can make the job harder. You may need to drill into concrete, lift pavers, reach deck framing, or dig for a new footing.
Before any work, check what sits below the mounting area. Pipes, wiring, irrigation lines, drainage, and structural parts can affect where it’s safe to drill or dig.
The finished height matters, too. The receiver needs to sit correctly and keep the support pole aligned.
For pavers, remove the section around the mounting point and add a suitable footing if the system calls for one. On a deck, the anchor may need to connect to joists or added framing.
So don’t pick an anchor based on appearance alone. Match the mounting method to the existing patio and the umbrella’s requirements.
What Should Concrete and Ground-Sleeve Installation Include?
Ground sleeves need careful placement, proper alignment, concrete, and enough curing time before the umbrella goes in.
Some in-ground systems specify a waiting period before the umbrella is installed; follow the exact cure time in the selected product’s instructions. Other products may have different requirements, so don’t copy one system’s timing for another.
A typical installation may follow this order:
- Confirm the location and clearance.
- Check for buried utilities.
- Prepare the required footing.
- Set the sleeve in place.
- Keep the sleeve level and straight.
- Pour the specified concrete.
- Wait for the required cure time.
- Install the umbrella.
- Check the pole and canopy.
The sleeve isn’t the whole support system. The footing transfers the load into the ground.
Alignment matters, too. A sleeve in the wrong spot can affect shade coverage, furniture clearance, and pole operation.
Use the manufacturer’s footing size, concrete amount, and cure time. Drainage also matters because trapped water can lead to corrosion or make the pole harder to remove.
For a fixed patio setup, plan the footing as part of the patio itself.
How Should Drainage and Corrosion Be Managed?
Buried receivers need regular checks for water, debris, and corrosion. Even when the umbrella is removed, the receiver stays in the patio and remains exposed to the elements.
Some permanent sleeve systems use caps or water-management features. Check the selected manufacturer’s documentation for the exact design.
Check for:
- Standing water around the receiver
- Rust or surface corrosion
- Cracks around the footing
- Loose bolts or fasteners
- Damaged coatings
- Debris inside the sleeve
- Problems removing the pole
Material matters, too. Stainless steel, galvanized steel, aluminum, and coated parts can react differently to moisture and salt air. Coastal patios and pool areas deserve extra care.
Don’t assume a receiver needs no maintenance because it uses corrosion-resistant materials. Inspect the hardware and the concrete or deck around it.
Does Anchoring Make a Patio Umbrella Windproof?
No. Anchoring can hold the support in place, but it can’t stop wind from acting on the canopy, ribs, pole, arm, or hardware.
Wind can push against the umbrella canopy like a sail. Those forces move through the frame and into the anchor and foundation. So, a fixed base may stop movement at the ground while another part of the umbrella remains at risk.
A safe routine is simple:
- Close it before strong winds.
- Secure the closed canopy.
- Follow the manufacturer's weather guidance.
- Remove or cover it for storage.
- Check hardware after severe weather.
- Don’t use one wind-speed number for every umbrella. Canopy size, shape, tilt, location, and mounting method can change how an umbrella handles wind.
Buildings can also make wind less predictable. Walls, roofs, and nearby structures may create strong or swirling gusts.
Anchoring still has a clear benefit. It keeps the umbrella in its planned position without relying on a large weighted base.
How Should You Choose an Anchored Umbrella System?
Choose the anchor after checking the umbrella, patio, furniture layout, and weather exposure. Consider the overall layout when choosing an umbrella instead of relying on fixed shade structures alone.
Use this order:
- Measure the seating area.
- Choose Market or Cantilever.
- Check the canopy size.
- Decide if the location will stay fixed.
- Identify the patio surface.
- Match the approved anchor or base.
- Plan removal and storage.
- Set a weather routine.
A Market umbrella can suit a dining table with centered shade. A cantilever can be better when people need open space under the canopy.
Then look at the patio surface. Concrete may suit a bolt-down plate, while a dedicated footing may suit an in-ground receiver. Decks need support from the structure below, not only the surface boards.
Fabric matters, too. UV protection, care needs, color, and fabric type affect how the canopy holds up outdoors. They don’t replace proper anchoring.
When Should You Choose a Fixed Anchor?
A fixed anchor makes sense when the umbrella has a dedicated spot and the patio layout isn’t likely to change.
It can suit:
- Fixed dining areas
- Poolside seating
- Busy walkways
- Commercial patios
- Stable furniture layouts
- Spaces with little room for a large base
An in-ground anchoring base can also keep more floor space clear. But moving it later may mean extra work.
What Should You Verify Before Installing an Anchored Umbrella?
Before installing, check the umbrella, receiver, anchor, patio surface, and installation instructions as one system. Don’t assume that parts will fit because they look similar.
Verify these points:
- Can the surface support the anchor?
- Does the receiver fit the pole?
- Is the base approved for the canopy?
- Is there enough clearance?
- Can the umbrella be removed?
- Does the receiver have a cover?
- What weather rules apply?
- What maintenance is needed?
- Is professional installation required?
- Are footing and anchor details provided?
Also check what’s below the patio before drilling or digging. Utilities, drainage, waterproofing, and reinforcement can affect where the anchor can go.
For a deck, confirm how the hardware connects to the frame. For concrete, check slab thickness, condition, edge distance, and anchor type. For soil, don’t rely on a buried tube alone. Get the footing requirements for the exact umbrella system.
FAQ
How deep should a ground anchor be for an anchored patio umbrella?
The required depth depends on the umbrella size, support pole, anchoring system, soil conditions, and local weather. A ground anchor must provide enough resistance to keep the umbrella stable without shifting.
Before installation, check the manufacturer’s specifications and local building requirements. Do not rely on a standard depth because different umbrella systems and ground conditions require different installation methods.
Can anchored patio umbrellas be installed on wood decks?
Yes, but a wood deck requires an anchoring method designed for its structure. The mounting hardware must connect securely to structural framing rather than relying only on surface boards.
Check the deck’s condition, joist layout, umbrella size, and expected wind resistance before installation. If the structure cannot support the load, choose another suitable location or installation method.
How do I protect an anchored patio umbrella from UV exposure?
Choose an UV-resistant umbrella canopy and close it when you are not using it. Regular UV exposure can gradually affect fabric color and strength, even when the canopy provides sun protection. A UV-protective sleeve can provide additional protection during storage. Clean the canopy according to its care instructions and allow it to dry completely before covering it.
What should I check before installing an anchored umbrella in a high-wind area?
For high-wind zones, check the umbrella’s wind resistance, anchoring system, support base, and rated weather conditions. A Wind Vent can help reduce pressure on the umbrella canopy, but it does not make an umbrella safe during severe weather.
Close and secure the canopy before strong winds arrive. Inspect the anchors, screws, and support pole regularly for movement or damage.
Can I use a permanent in-ground mounting system for a cantilever umbrella?
A cantilever umbrella can use a permanent in-ground mounting system when the mounting hardware is specifically designed for that umbrella. Installation may require a concrete footing, threaded rods, or other approved hardware.
Check the umbrella’s weight, support structure, and installation requirements before choosing the system. Professional installation may be appropriate when the project requires excavation or structural work.
How does a tilt mechanism help when using an anchored patio umbrella?
A Tilt Mechanism lets you change the umbrella canopy angle as the sun moves. This can help maintain comfortable outdoor shade without moving the entire umbrella.
Before choosing a system, check whether the tilt function works with its anchoring hardware and support pole. A simple adjustment can make the umbrella more useful throughout the day.
Do I need an umbrella sleeve for an anchored patio umbrella?
An umbrella sleeve can help protect the support pole or canopy when the umbrella is stored or not in use. It is especially useful when the umbrella remains installed outdoors between uses. Choose a sleeve that fits the umbrella correctly and does not trap moisture. Allow wet fabric to dry completely before covering it to reduce mildew risk.
Can ballast bags improve the stability of an anchored patio umbrella?
Ballast Bags can add weight to compatible support bases, but they are not a substitute for a properly designed anchoring system. Before using them, check the base manufacturer’s weight requirements and the umbrella’s size.
Ballast is most useful when the installation allows additional weight. It should never be treated as sufficient protection during severe or unsafe weather.
What type of screws should I use for an anchored patio umbrella?
Use stainless steel screws or other fasteners specifically approved for the anchoring system and installation surface. The correct fastener depends on the substrate, anchor design, umbrella load, and local conditions.
Do not substitute ordinary screws because they may not provide enough strength or corrosion resistance. Follow the installation instructions for fastener size, placement, and tightening.
What Is the Best Way to Approach Anchored Patio Umbrella Systems?
An anchored patio umbrella should be treated as a planned installation, not simply a heavier base. The canopy, pole, anchor, mounting surface, and weather conditions all need to work together. Concrete, decking, pavers, and soil may each require a different approach, so it's important to confirm what supports the mounting point before installation.
For homeowners planning an outdoor umbrella system, the goal is simple, secure shade that fits the patio without creating extra problems. Tempo Patio can help you compare umbrella and base options for your space.
